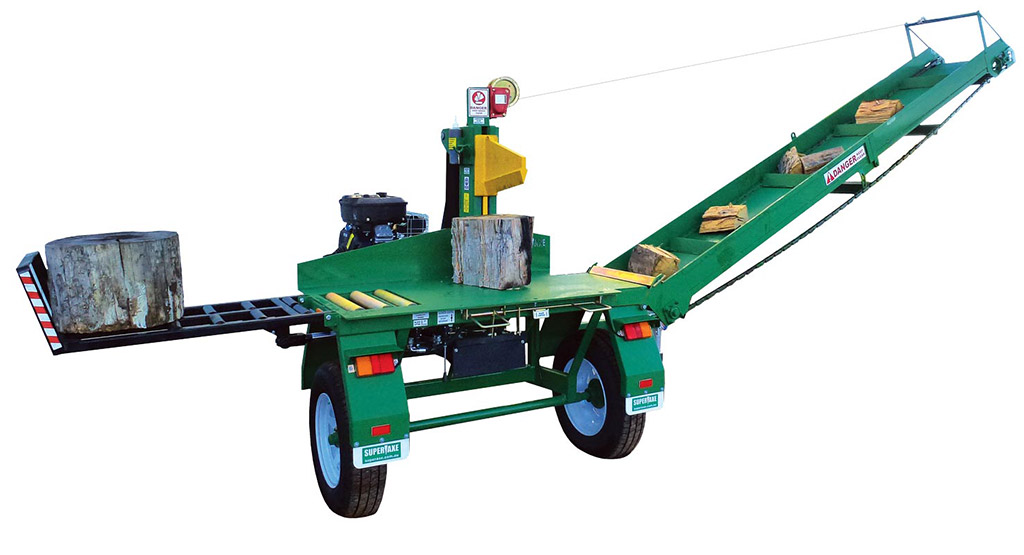

Designed and built in Australia, the WS4150 Superaxe™ is the largest, fastest and most powerful Superaxe™ in the range, making it the ideal solution for processing large volumes of firewood with ease.

SUPERAXE WS4150

OVERVIEW

Since 1993, the legendary Superaxe™ has earned its reputation as the industry leader. The WS4150 is the most powerful machine in the range with extra features built in to ensure large volumes of firewood can be split with ease. Built to order in our Australian workshop, this machine is ideal for businesses or individuals requiring high output.

FEATURES

The WS4150 Superaxe™ is suitable for domestic use and semi-commercial operations. The cutting head, larger than our smaller models, is offset to better utilise bench space and to make wood handling easier for the operator. With 26 Tonnes of splitting power and fast cycle times, this machine can produce up to 2 cords per hour. The WS4150 comes standard with an electric start engine, 440lb capacity hydraulic block lifter, road registration kit, and can be optioned with a 12’ outfeed elevator that can be folded for transport. “T” blade and “X” blade options are also available on this model.

SPECS

Built to order in Australia

WS4150 OPTIONS

REGO KIT

Superaxe WS4150

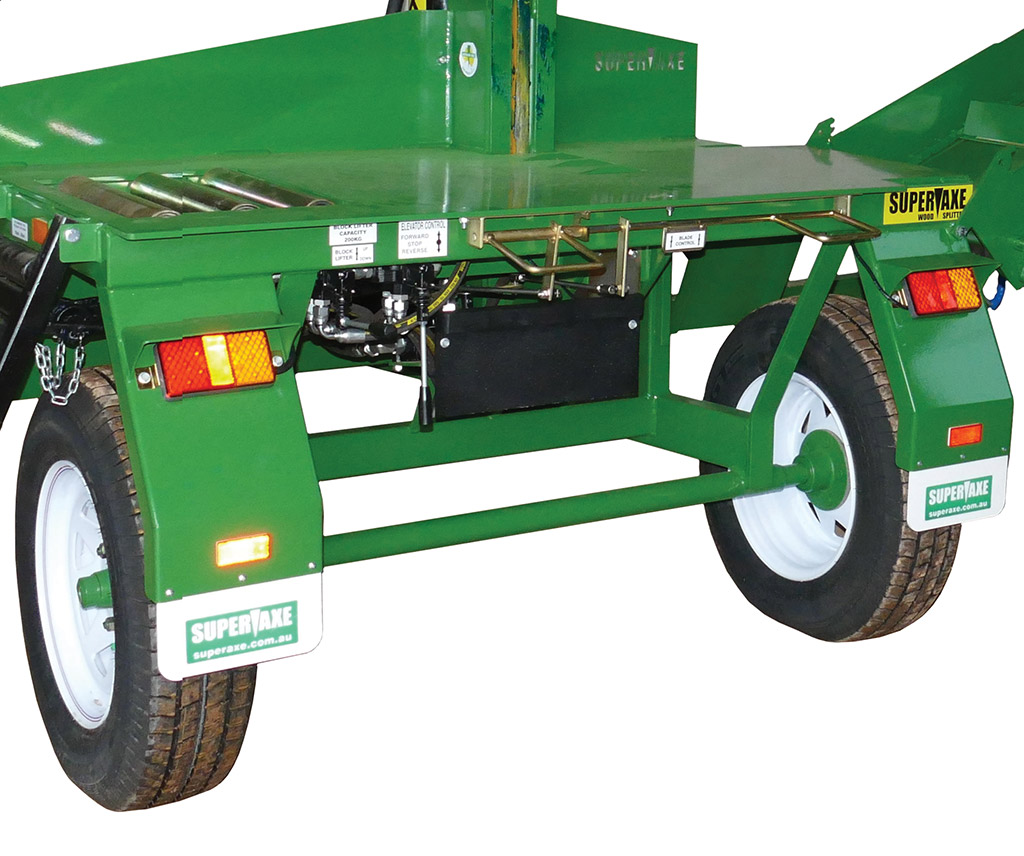

All models are road-towable and can be registered for legal towing. The Registration kit includes permanent LED lights, reflectors, heavy duty mud guards and VIN plate

ELEVATORS

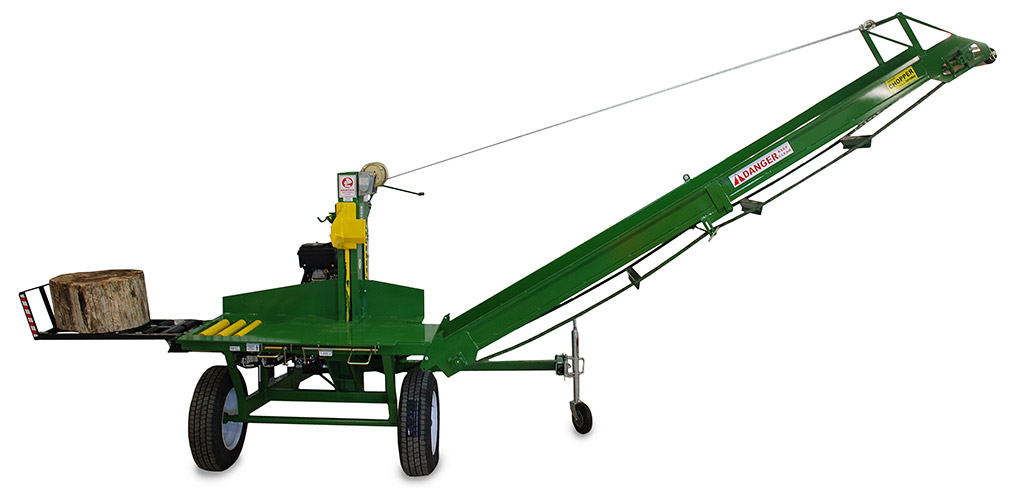

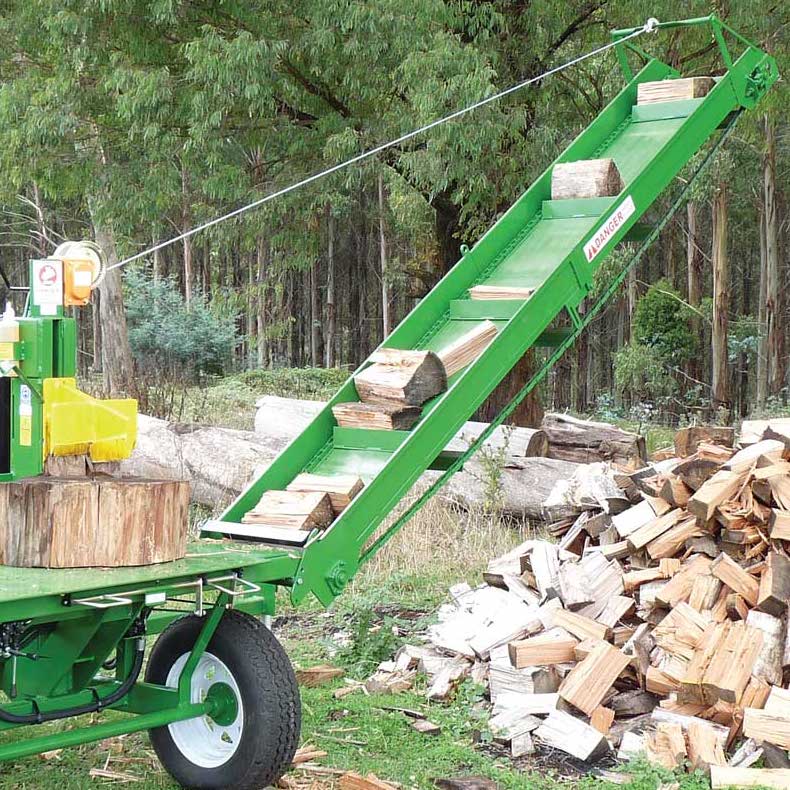

Load your wood directly into your truck or trailer and save double handling. This 12ft Elevator fits to the WS3150 & WS4150 Superaxe™ models. The elevator will reach up to 10ft and folds for travelling. It utilises a manual winch mechanism to fold and unfold elevator and set up takes only a few minutes. Also ideal for stockpiling, 19ft, 31ft & 43ft free standing elevators give more height and allow for easy positioning.

WHY BUY FROM US? - WE EARNED OUR REPUTATION

Since 1993, Whitlands Engineering has been designing and building legendary firewood machinery. From humble beginnings, the Superaxe™ woodsplitter transformed the wood splitter industry, earning an unrivalled reputation for innovative design, safety and ease of use. Still family owned, over the last 30 years our company has grown to employ over 30 people and manufacture a whole range of options from the smallest Superaxe™ to the most powerful Log Saw. Every machine is built from the ground up in our north-east Victorian workshop by a highly skilled workforce. Many of our staff have been with the company for decades and bring with them genuine expertise in the design and building of our machinery. The quality of the construction is unmatched – these machines are built for a lifetime of use. Furthermore, we build every machine to order and only sell direct, meaning that our customer support team is on hand to assist with any product or technical enquiries. We go to great lengths to source from Australian suppliers, contribute to our local community and provide a positive work environment for our staff and their families. We’re extremely proud of what we do and what we build… Support Australian made – we do!

THE SUPERAXE RANGE

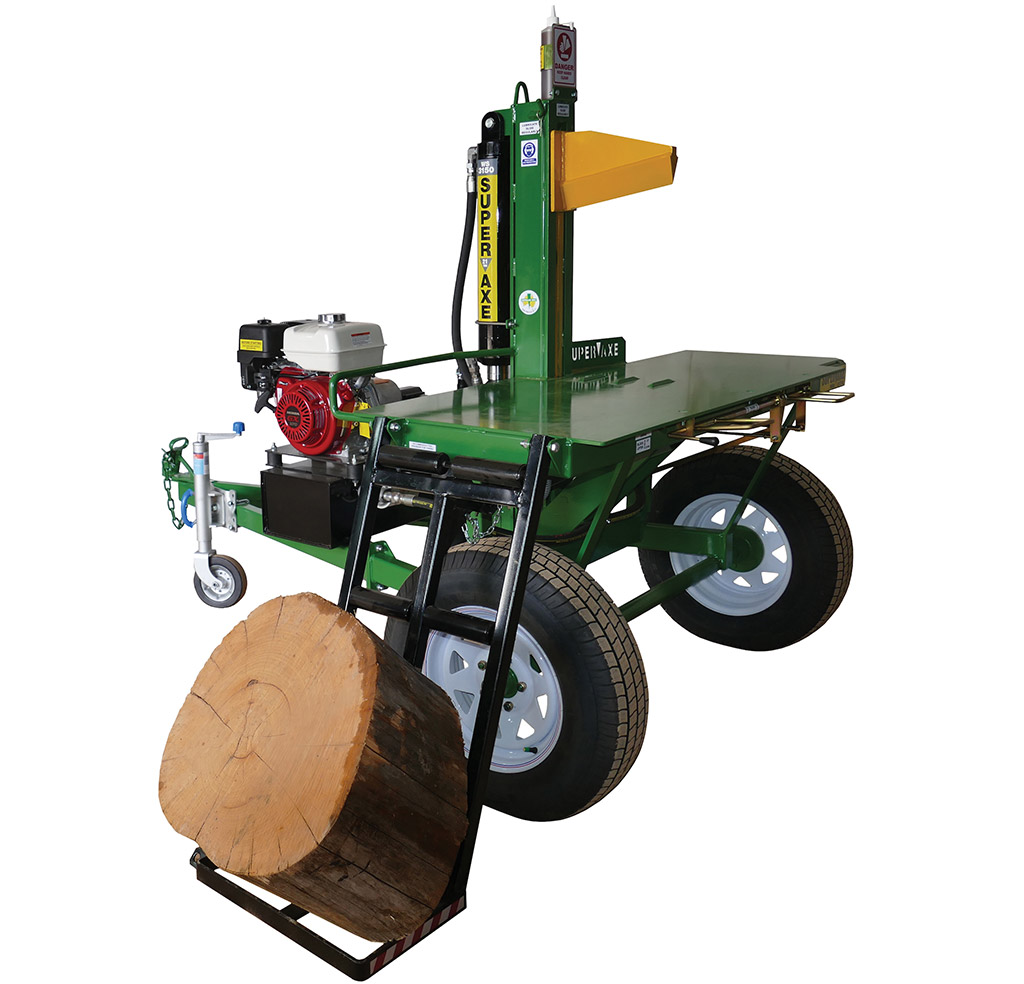

WS3150

The Superaxe™ WS3150 is our mid-sized block splitter, and is the perfect solution for splitting larger volumes of firewood for farms, hire, or small commercial operations. The WS3150 features fast cycle times, robust construction, a large work bench, a 440lb capacity hydraulic block lifter, and a two-hand control system. A Honda 9hp engine is fitted as standard (Honda 13hp also available) delivering an impressive 21 tonnes of splitting power and a 6.5 second cycle time with auto-return. The WS3150 can be optioned with a 12’ fold-out elevator and a road towing kit.

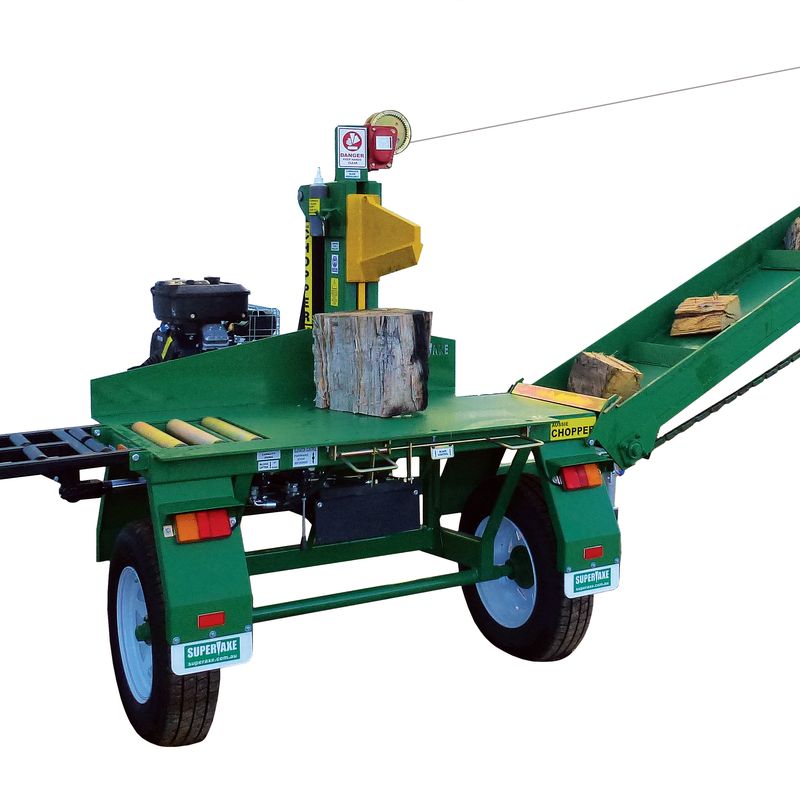

WS4150

Superaxe WS4150

The Superaxe™ WS4150 is suitable for domestic use and semi-commercial operations. The cutting head is larger than the WS3150 and is offset to better utilise bench space and to make wood handling easier for the operator. With 26 Tonnes of splitting power and fast cycle times, this machine can produce up to 2 cords per hour. The WS4150 comes standard with an electric start engine, 440lb capacity hydraulic block lifter, road registration kit, and can be optioned with a 12’ outfeed elevator that can be folded for transport. “T” blade and “X” blade options are also available on this model.

TECHNICAL SPECIFICATIONS

  • ESTIMATED OUTPUT: Up to one cord per hour output (guide only)
  • SPLITTING FORCE: 26 tons splitting force (23hp)
  • CYCLE TIME: 23hp engine – 6.5 seconds
  • ENGINE OPTIONS: 23hp – Honda V-Twin Electric Start
  • ENGINE WARRANTY: All engines backed by comprehensive manufacturers warranty
  • PUMPS: American cast iron 2 stage hydraulic pump
  • RAM: High quality Australian made 4.5 inch ram with 3 inch rod develops genuine 26 tons of splitting force
  • HYDRAULIC HOSES: All double wire rated ¾ inch hydraulic hoses
  • OIL RESERVOIR: 13 Gallon oil reservoir

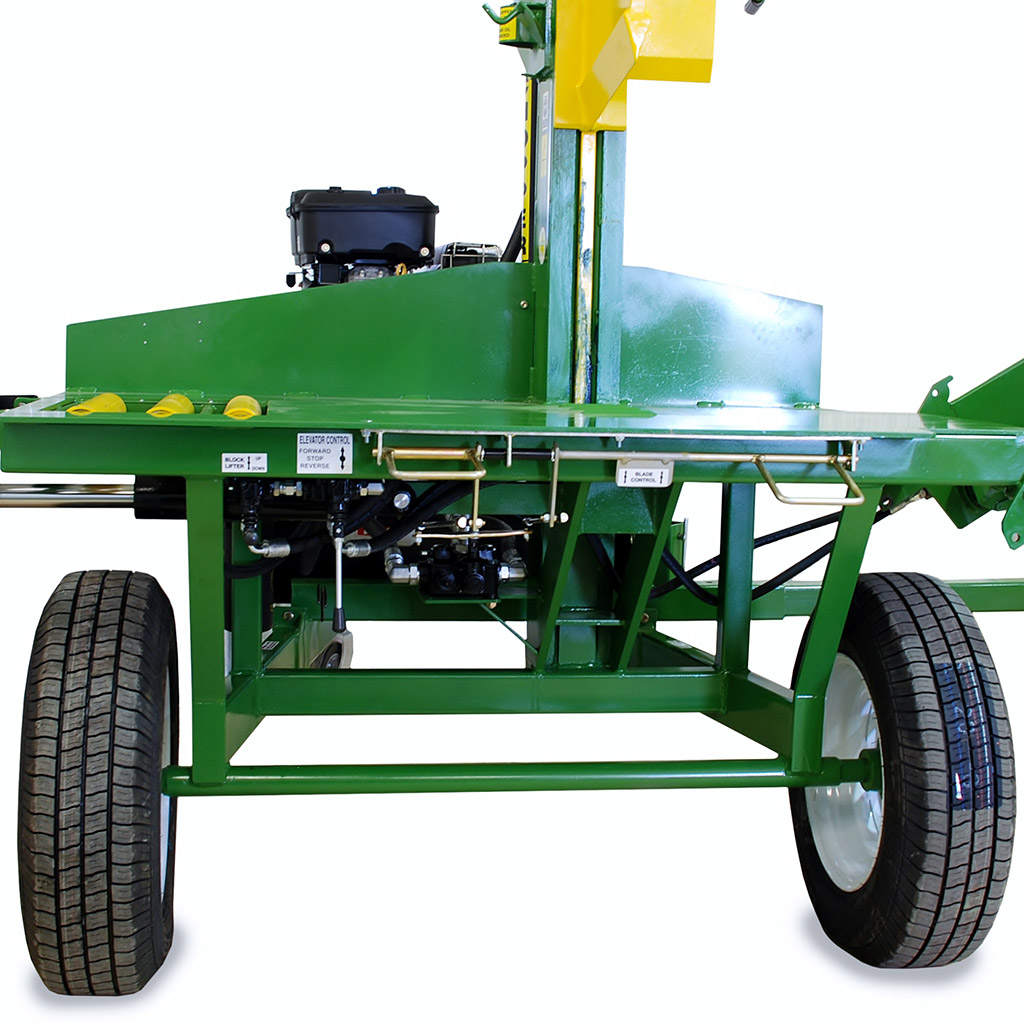

  • BUILT TO LAST: Rugged heavy duty construction with minimal maintenance required, for a lifetime of trouble free use
  • BENCH: 59″ wide x 30″ deep; Grip bars in bench (under blade) grip blocks for secure splitting
  • WARRANTY: Two year warranty on the frame
  • COUPLING: Approved 2″ (50mm), 4400lb rated cast iron coupling. Safety chain fitted
  • WHEELS AND HUBS: 225 x 15 wheels and high speed hubs. Handles all towing requirements.
  • JOCKEY WHEEL: High quality 8 inch heavy duty swing up jockey wheel
  • DIMENSIONS: Weight 1600lb / Height 6ft / Width 5ft / Length 8ft

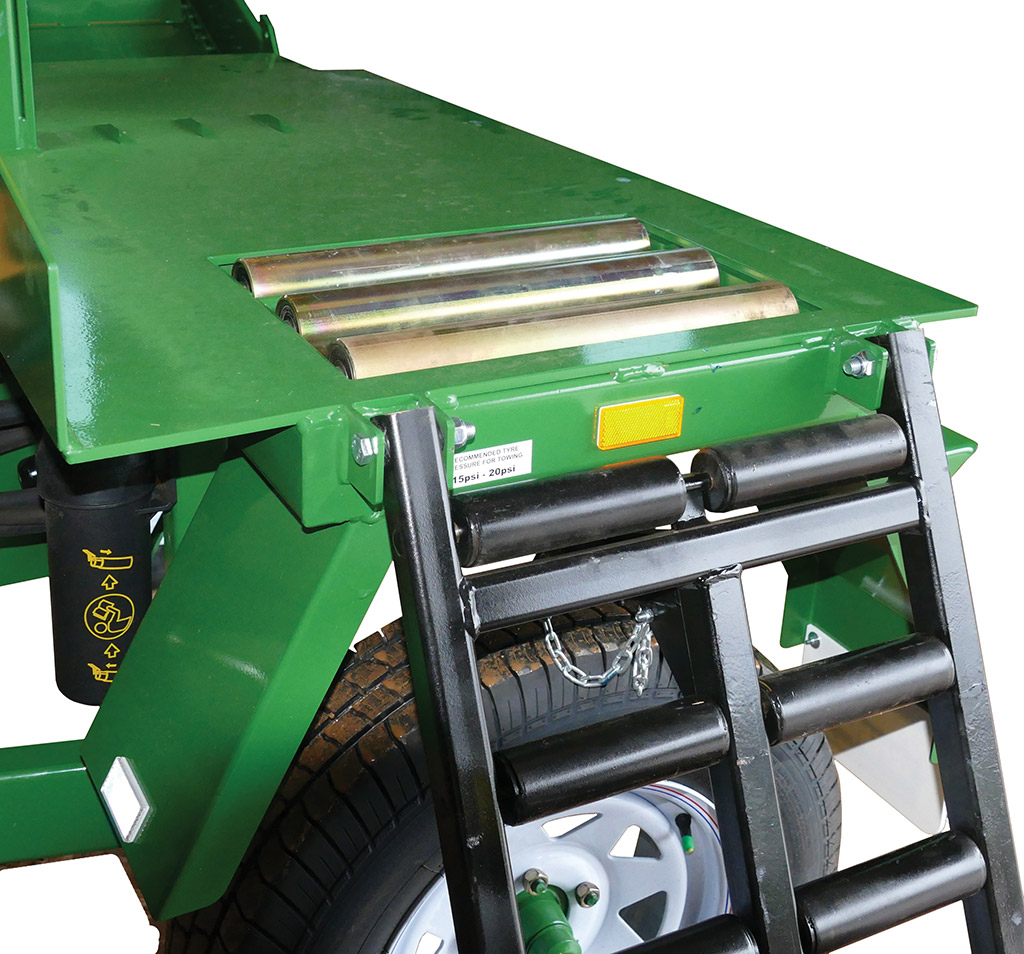

  • BLOCK LIFTER: Heavy duty hydraulic block lifter with 440lb capacity bringing blocks up to bench height.
  • TOWING: Block lifter is easily folded and secured for traveling.

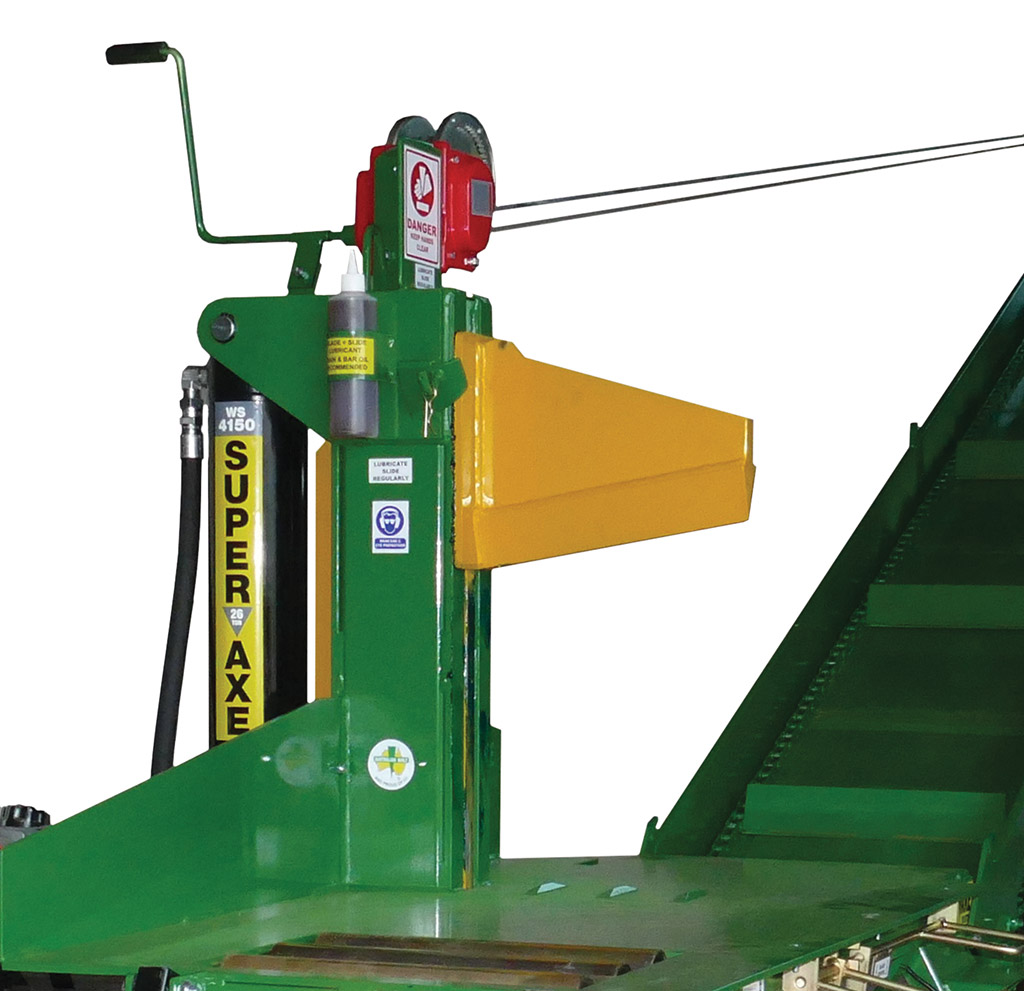

  • PATENTED SPLITTING SYSTEM: Vertical sliding blade design gives superior splitting performance and long life with minimal maintenance. 14″ cutting edge.
  • BLADE CONSTRUCTION: Blade and slide surfaces made from high tensile Hardox 450 steel
  • ERGONOMIC DESIGN: Ideal bench height & block lifter ensures the operator can work with a straight back with minimal bending or straining.
  • CONTROLS: The innovative double handed control system ensures ease of use, quick cycle times & unmatched safety
  • EASE OF USE: Easy splitting with ample room on table to work blocks. Never lift another block again.
  • SAFETY COMMUNICATION: Weatherproof canister on every machine contains an operator instruction & safety training sheet for quick reference. All machines also come with a detailed operator manual which includes operator training, maintenance recommendations & risk assessment.
  • READY TO ORDER? Please contact Carta Equipment to place an order.
