Designed and built in Australia, the WS3150 Superaxe™ is Australia’s favourite wood splitter. This powerful and robust machine features a large workspace and a hydraulic block lifter, making it ideal for individuals, hire companies or small commercial operations – with engine, hire and registration options to suit.

SUPERAXE WS3150

OVERVIEW

Since 1993, the legendary Superaxe™ woodsplitter has earned its reputation as the industry leader. The WS3150 Superaxe™ is the middle-sized machine in the range; with more space to work and powerful engine options. Built in our Australian workshop, this machine is perfect for individuals, hire companies or small commercial operations.

FEATURES

The Superaxe™ WS3150 is our mid-sized block splitter, and is the perfect solution for splitting larger volumes of firewood for farms, hire, or small commercial operations. The WS3150 features fast cycle times, robust construction, a larger work bench, a 440lb capacity hydraulic block lifter, and a two-hand control system. A Honda 9hp engine is fitted as standard (Honda 13hp also available) delivering an impressive 21 tonnes of splitting power and a 7 second cycle time with auto-return. The WS3150 can be optioned with a 12’ fold-out elevator and a road towing kit.

SPECS AT A GLANCE

Built to order in Australia

WS3150 OPTIONS

ENGINE

The WS3150 is available with a 9hp or 13hp genuine Honda engine. The 9hp engine gives a cycle time of 7 seconds, and the 13hp option gives a cycle time of 6.5 seconds. Both engines are covered by extensive manufacturers warranty, are fuel efficient and easy to start.

HIRE KIT

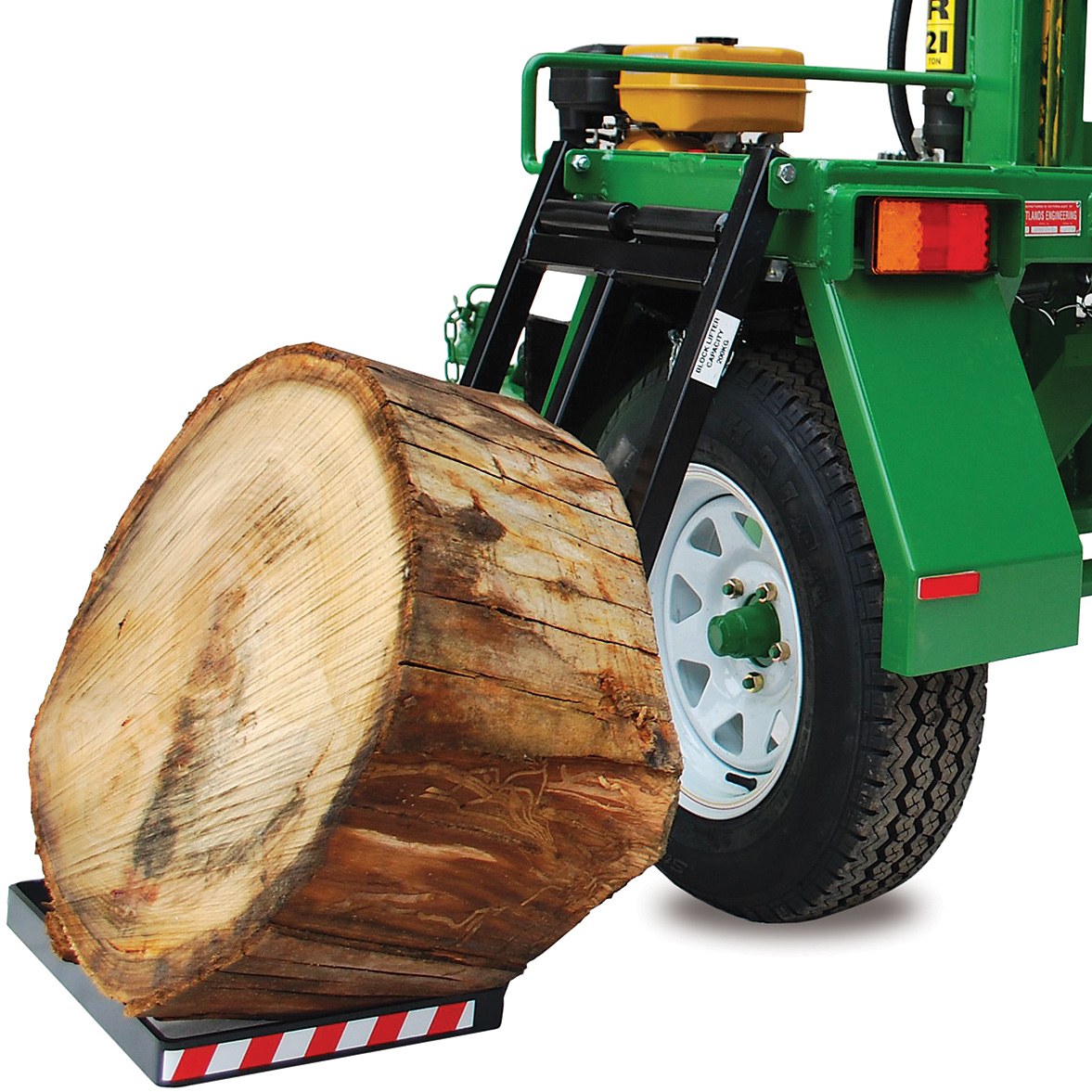

Superaxe™ is the preferred woodsplitter for the Australian and New Zealand hire industry. The WS3150 is able to be fitted with a hire kit, which includes heavy duty mudguards, a heavy duty swing up jockey wheel, permanent LED lights, reflectors, base plug mounted at the front of the draw bar and VIN plate.

REGO KIT

All models are road-towable and can be registered for legal towing. The Registration kit includes permanent LED lights, reflectors, heavy duty mud guards and VIN plate

Elevator options

Load your wood directly into your truck or trailer and save double handling. This 12' elevator fits to the WS3150 & WS4150 Superaxe™ models. The elevator will reach up to 12 feet and folds for travelling. It utilises a manual winch mechanism to fold and unfold elevator and set up takes only a few minutes.

WHY BUY FROM US? - WE EARNED OUR REPUTATION

Since 1993, Whitlands Engineering has been designing and building legendary firewood machinery. From humble beginnings, the Superaxe™ transformed the wood splitter industry, earning an unrivalled reputation for innovative design, safety and ease of use. Still family owned, over the last 30 years our company has grown to employ over 30 people and manufacture a whole range of options from the smallest Superaxe™ to the most powerful Log Saw. Every machine is built from the ground up in our north-east Victorian workshop by a highly skilled workforce. Many of our staff have been with the company for decades and bring with them genuine expertise in the design and building of our machinery. The quality of the construction is unmatched – these machines are built for a lifetime of use. Furthermore, we build every machine to order and only sell direct, meaning that our customer support team is on hand to assist with any product or technical enquiries. We go to great lengths to source from Australian suppliers, contribute to our local community and provide a positive work environment for our staff and their families. We’re extremely proud of what we do and what we build… Support Australian made – we do!

THE SUPERAXE RANGE

SUPERAXE WS3150

The Superaxe™ WS3150 is our mid-sized block splitter, and is the perfect solution for splitting larger volumes of firewood for farms, hire, or small commercial operations. The WS3150 features fast cycle times, robust construction, a large work bench, a 440lb capacity hydraulic block lifter, and a two-hand control system. A Honda 9hp engine is fitted as standard (Honda 13hp also available) delivering an impressive 21 tonnes of splitting power and a 7 second cycle time with auto-return. The WS3150 can be optioned with a 12’ fold-out elevator and a road towing kit.

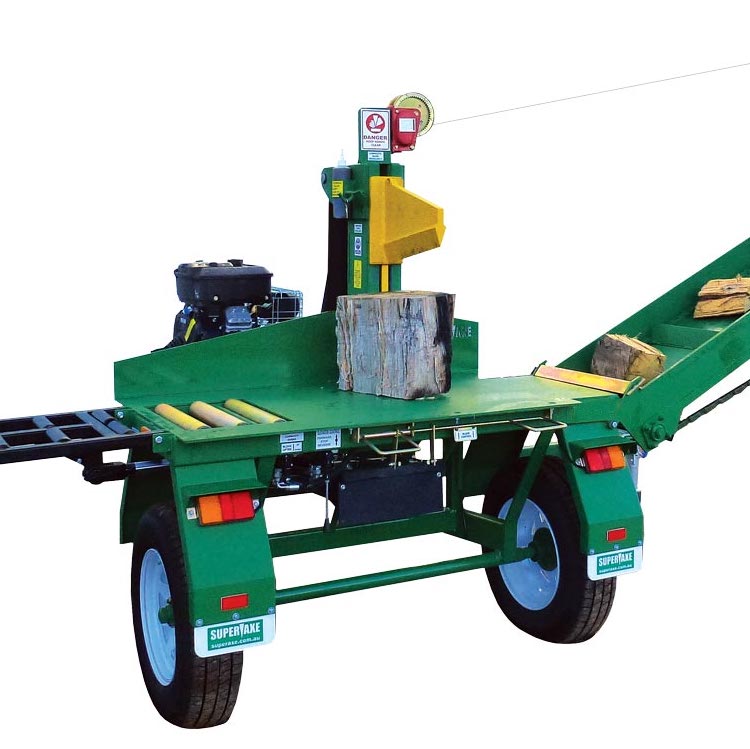

SUPERAXE WS4150

The Superaxe™ WS4150 is suitable for domestic use and semi-commercial operations. The cutting head is offset to better utilise bench space and to make wood handling easier for the operator. With 26 tonnes of splitting power and fast cycle times, this machine can produce up to 2 cords per hour. The WS 4150 comes standard with an electric start engine, 440lb capacity hydraulic block lifter, road registration kit, and can be optioned with a 12’ outfeed elevator that can be folded for transport. “T” blade and “X” blade options are also available on this model.

TECHNICAL SPECIFICATIONS

  • ESTIMATED OUTPUT: Up to one cord per hour output (guide only)
  • SPLITTING FORCE: 21 tons splitting force (9hp)
  • CYCLE TIME: 9hp engine – 7 seconds; 13hp – 6.5 seconds
  • ENGINE OPTIONS: 9hp or 13hp – Honda
  • ENGINE WARRANTY: All engines backed by comprehensive manufacturers warranty
  • PUMPS: American cast iron 2 stage hydraulic pump
  • RAM: High quality Australian made 4 inch ram with 2 inch rod develops genuine 21 tons of splitting force
  • HYDRAULIC HOSES: All double wire rated ¾ inch hydraulic hoses
  • OIL RESERVOIR: 13 Gallon oil reservoir
  • BUILT TO LAST: Rugged heavy duty construction with minimal maintenance required, for a lifetime of trouble free use

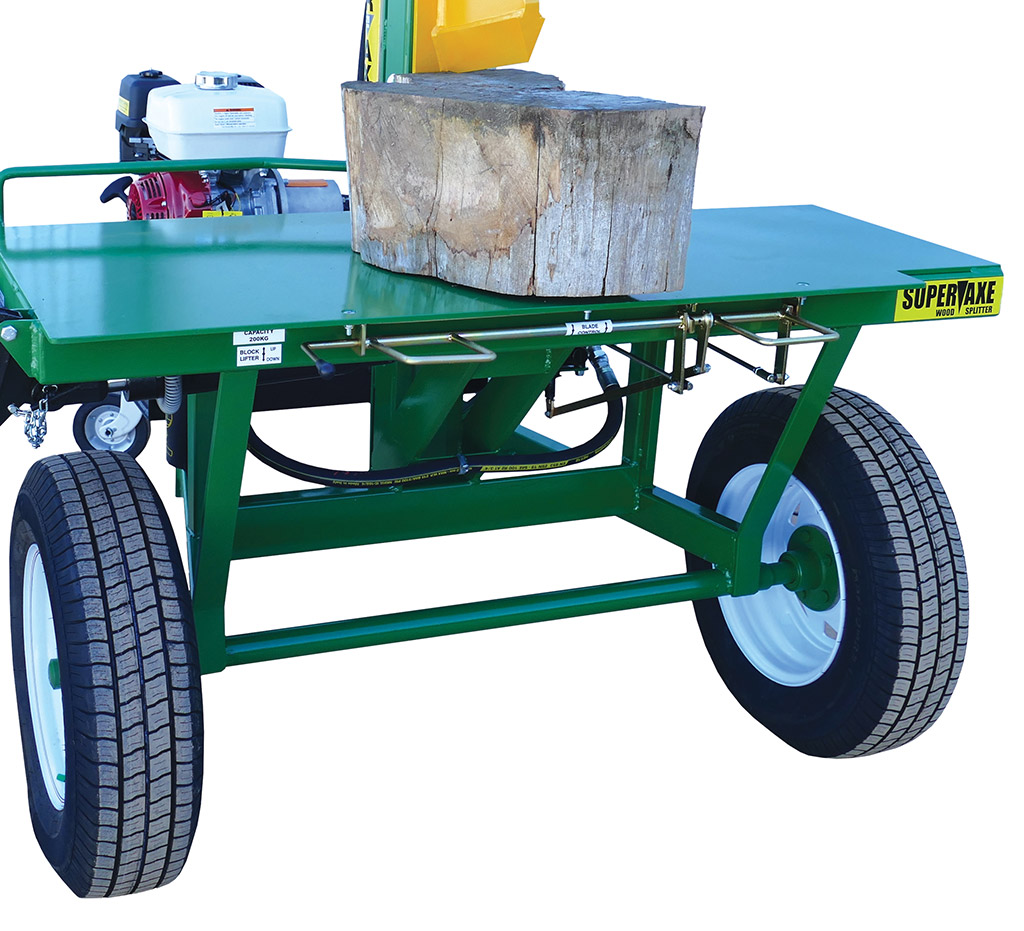

  • BENCH: 59″ wide x 26″ deep; Grip bars in bench (under blade) grip blocks for secure splitting
  • WARRANTY: Two year warranty on the frame
  • COUPLING: Approved 2″ (50mm), 4400lb rated cast iron coupling. Safety chain fitted
  • WHEELS AND HUBS: 185 x 14″ wheels and high speed hubs. Handles all towing requirements.
  • JOCKEY WHEEL: High quality 8 inch heavy duty swing up jockey wheel
  • DIMENSIONS: Weight 1200lb / Height 5.5ft / Width 5ft / Length 8ft

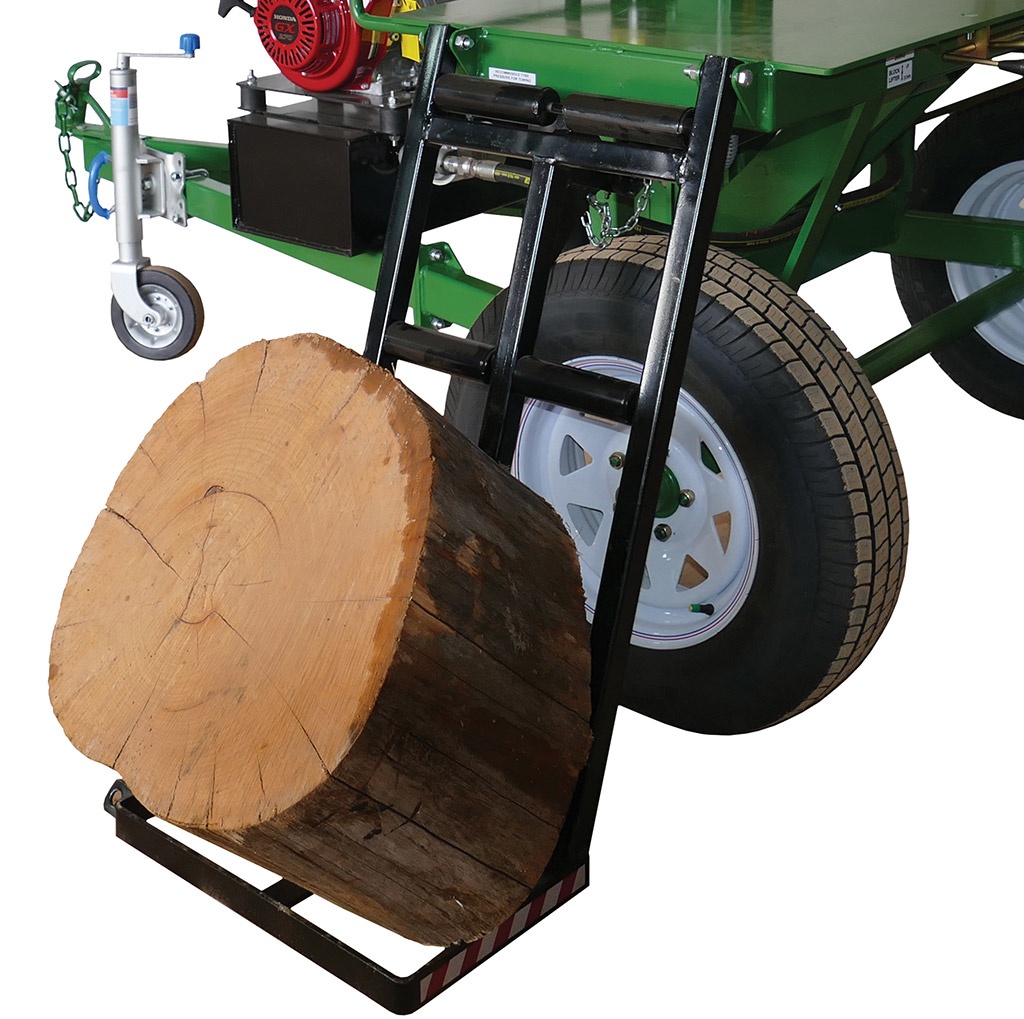

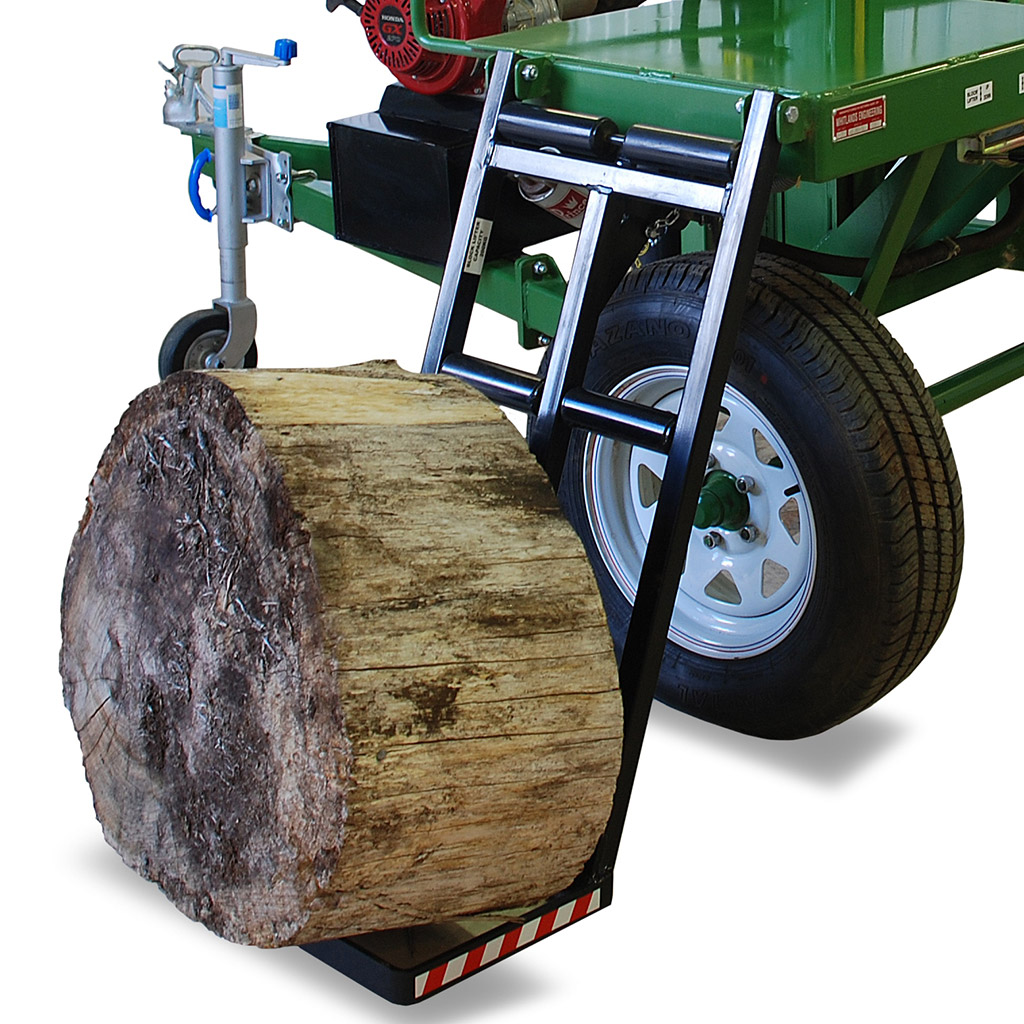

  • BLOCK LIFTER: Heavy duty cable & pulley system will lift 330lb blocks up to bench height.
  • TOWING: Block lifter is easily folded and secured for traveling.

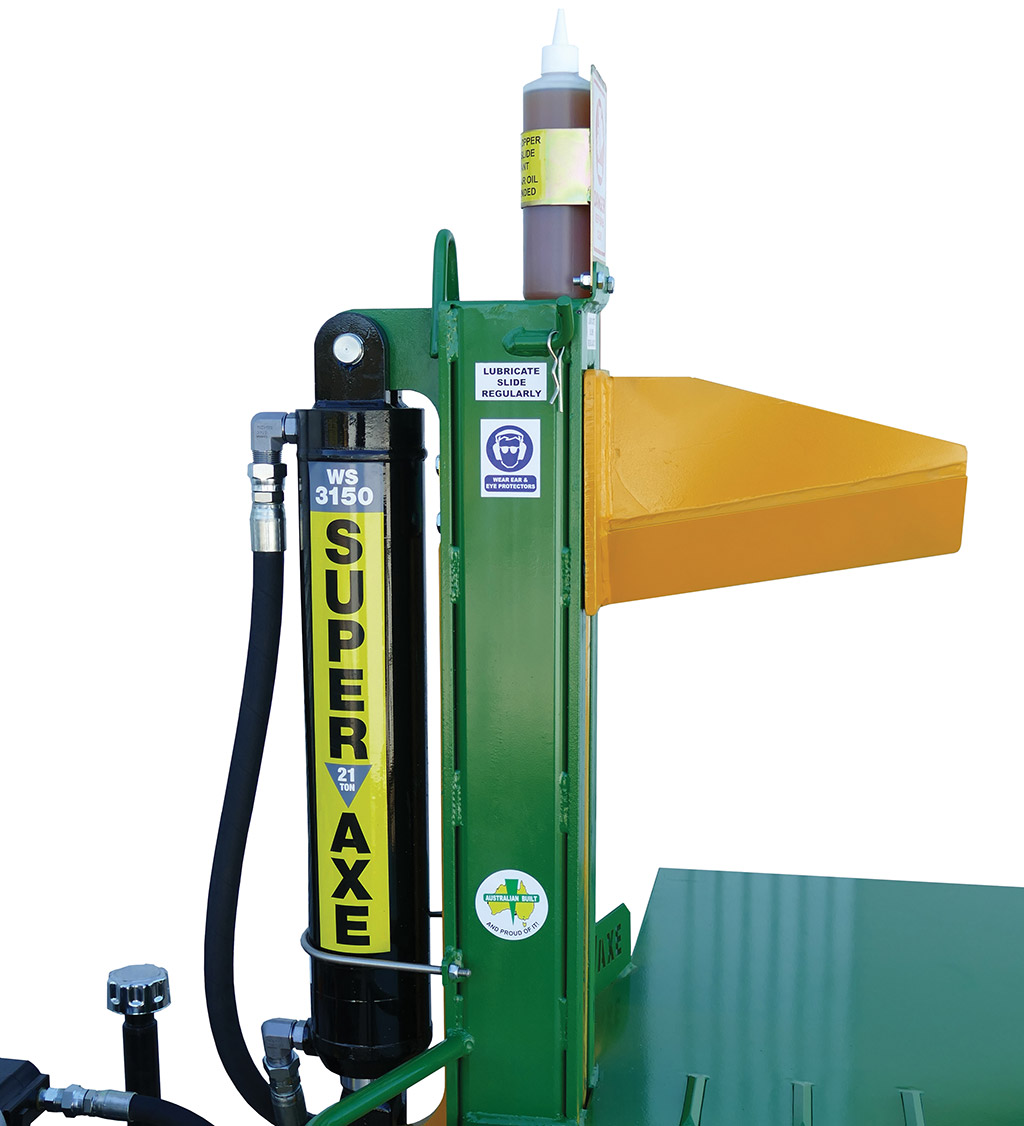

  • PATENTED SPLITTING SYSTEM: Vertical sliding blade design gives superior splitting performance and long life with minimal maintenance. 12″ cutting edge.
  • BLADE CONSTRUCTION: Blade and slide surfaces made from high tensile Hardox 450 steel
  • ERGONOMIC DESIGN: Ideal bench height & block lifter ensures the operator can work with a straight back with minimal bending or straining.
  • CONTROLS: The innovative double handed control system ensures ease of use, quick cycle times & unmatched safety
  • EASE OF USE: Easy splitting with ample room on table to work blocks. Never lift another block again.
  • SAFETY COMMUNICATION: Weatherproof canister on every machine contains an operator instruction & safety training sheet for quick reference. All machines also come with a detailed operator manual which includes operator training, maintenance recommendations & risk assessment.
  • HIRE & RENTAL / REGISTRATION KIT: Includes HD mudguards, LED lights, VIN plate for registration compliance. Fleet colours available.
  • RAM OPTION: 3 1/2 inch ram for faster cycle times (15 ton splitting force) ideal for softer hardwoods.
  • OTHER OPTIONAL EXTRAS: Remote powered units, engine cover, electric start, etc.
  • READY TO ORDER? Please contact Carta Equipment to place an order.
